1. Introduction and warning
This design guide aims the reader at understanding the basic
concepts behind the design and sizing of pressure relief valves for
liquid flow but not at designing a valve for operational purposes.
It is based on published sources but should not
be considered for the detail design and selection / ordering of a
pressure safety valve. Indeed, pressure safety valves are of
utmost importance for the safety of the process, as they are most
often the last resort to avoid an explosion, their design must
therefore be done only by reputable companies. Only after having
clearly defined the application, the position of the valve...etc...
with the valve supplier, can he advise properly the plant operator and
finalize the design of the valve.
The calculation below are derived
from API520 and adapted from various sources. Those calculations
are valid for liquid only. Other types of services will require
a different calculation code. API for example has other standards for
gas service or low pressure / vacuum valves. ASME or ISO have their
own guidelines.
Note that this page is not
discussing the choice and calculation of the design scenario, which
is the process events leading to the maximum flow released through
the valve. The required flow must be defined thanks to a risk
analysis and process calculations.
2. Safety valve sizing - liquid service
For liquid, the following formula can be used (WARNING - This
formula is not valid for gases, for gases under pressure, please
refer to this page) :
Equation 1 : pressure safety valve
required discharge area
With :
P1 = upstream relieving
pressure in kPa g (set pressure + allowable overpressure)
P2 = backpressure in
kPa g
A = required effective discharge
area of the safety valve in mm2
Q = required flow through the valve in l/min
G = specific gravity of the liquid
at the flowing temperature, referred to water in standard conditions
Kd = coefficient of
discharge, it can be read from manufacturer data for a given pressure
safety valve, however the following values can be used for a 1st
approximation :
Kd = 0.65 for a pressure relief valve,
with or without a rupture disc upstream
Kd = 0.62 for a rupture disc
Kw = capacity
correction factor due to back pressure
Kw = 1 for atm back pressure
Kw is not used for
conventional and pilot operated valves (don't require correction)
Kw to be estimated from tables and
charts for balance bellow valves (see figure 1)
Kc = correction factor if a
rupture disc is installed prior to the valve
Kc = 1 when no rupture disc is installed prior to
the valve
Kc = 0.9 if a rupture disc is used in combination
with the valve
Kv = correction factor due to
viscosity
T = temperature of the gas or
vapor upstream the valve at the moment it is released in K
Re = Reynolds number
μ = fluid viscosity in cP
The coefficient Kw to account for back pressure on
balanced bellow safety valves can be determined thanks to the
following abacus :

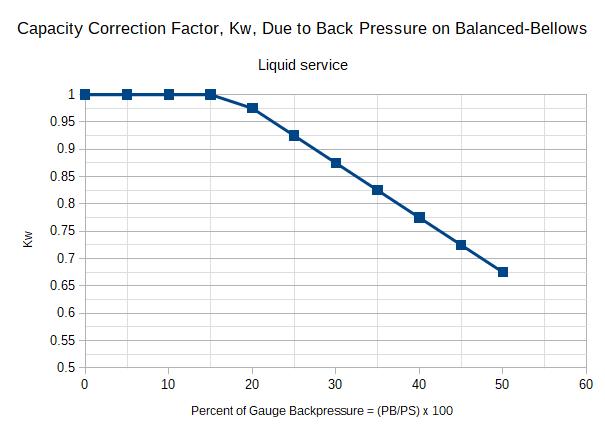

Figure 1 : Capacity Correction
Factor, Kw, Due to Back Pressure on Balanced-Bellows
The coefficient Kv can be calculated thanks to the
following formula :
Equation 2 : coefficient Kv calculation
The Reynolds number can be calculated thanks to the following
equation :
Equation 3 : Reynolds number calculation
3. Other calculation codes
Note that ISO 4126 also offers
correlations for safety valves sizing
4. Selection of Standard Relief Valves Orifice
The sizes of discharge areas is actually standardized and
manufacturers will propose sizes accordingly. The Engineer, after
having calculated the required size with the calculation sequence
above, needs to select a standard size offering a discharge area
higher than the calculated value.
Standard letter / designation |
Orifice area in in2 |
Orifice area in cm2 |
D |
0.110 |
0.71 |
E |
0.196 |
1.26 |
F |
0.307 |
1.98 |
G |
0.503 |
3.24 |
H |
0.785 |
5.06 |
J |
1.28 |
8.30 |
K |
1.84 |
11.85 |
L |
2.85 |
18.40 |
M |
3.600 |
23.23 |
N |
4.340 |
28 |
P |
6.38 |
41.16 |
Q |
11.050 |
71.29 |
R |
16 |
103.22 |
T |
26 |
167.74 |
5. Excel calculation tool
Note : the tool is supporting liquid flow in pressure, for gas
service please refer to this
page
Link
to Excel calculation tool
WARNING
www.powderprocess.net
cannot be held responsible for the use of the explanations,
calculation and calculation tools presented here, the use of the
information is at the user and its organization own risk and cost.
Source
Various sources based on API 520
