Electrostatic precipitator sizing : step by step shortcut calculation

Countries have implemented over the years stricter and stricter regulations for air pollution control, especially regarding the emission of fine solid particles. It can be particularly difficult and costly to remove those fine particles from the air exhaust of large chemical factories or power plants. One solution, to clean up large quantities of gas is to use an electrostatic precipitator. This page present a shortcut calculation to estimate the sizing of a duct type electrostatic precipitator required for a particular application. The sizing procedure is given step by step for ease of understanding and application.

1. STEP 1 : Gather data

You must gather regarding the gas stream to clean up, the target clean gas, as well as the expected behavior of the particles in the electrostatic precipitator :

• Gas volumetric flow rate
• Inlet gas loading in particles
• Target outlet gas loading in particles
• Drift velocity of the particles
• Assume a number of sections for the precipitator

What is the efficiency of a cyclone ?

The efficiency of a cyclone represents the proportion of particles that the cyclone can retain :

Efficiency = (inlet_loading - outlet_loading)/inlet_loading*100

with :

Efficiency = the efficiency of the cyclone (%)
inlet_loading = the concentration of solids in the gas entering the cyclone (kg/m³ or grains/ft³)
outlet_loading = the concentration of solids in the gas leaving the cyclone (kg/m³ or grains / ft³)

2. Calculation of the efficiency of a cyclone : step by step calculation

2.1 STEP 1 : collect the data

You must gather data on : the cyclone to check, the gas flow, and the solids particles characteristics.

• Cyclone diameter
• Cyclone gas inlet width
• Number of effective turns in the cyclone
• Inlet gas loading in particles
• Particles diameter
• Density of the particles
• Gas inlet temperature
• Gas inlet viscosity
• Gas inlet velocity

2.2 STEP 2 : Cut diameter calculation

The cut diameter is the diameter of particles for which 50% of those particles are collected by the cyclone. Bigger particles will be collected at >50%, smaller particles will be collected at <50%

The cut diameter can be calculated with the following formula [Chopey] :

d_pc = [9*μ*B_c/2*π*n_t*v_i*(ρ_p-ρ)]^0.5

With :

d_pc = cut diameter (microns)
μ = gas viscosity (lb/ft.s)
B_c = cyclone inlet width (ft)
n_t = number of effective turns in the cyclone (-)
v_i = inlet gas velocity (ft/s)
ρ_p = particle density (lb/ft³)
ρ = gas density (lb/ft³)

2.3 STEP 3 : Calculate the ratio of average particle diameter to the cut diameter

The ratio is equal to :

particle size ratio = d_p/d_pc

With :

d_p = mean particle diameter of the particles in the inlet flow (microns)
d_pc = cut diameter (microns)

2.4 STEP 4 : Estimate the cyclone efficiency

In order to quickly estimate the cyclone efficiency from the calculations above, the Lapple's curve can be used. This abacus is shown below :

One must use the particle size ratio in order to estimate a cyclone efficiency.

It is also possible to use the following formula [Chopey] :

Efficiency = E = 1/(1+(dp_c/d_p)²)

With :

E = Efficiency of the cyclone (%)
d_p = mean particle diameter of the particles in the inlet flow (microns)
d_pc = cut diameter (microns)

2.5 STEP 5 : Estimate the outlet flow particle loading

Once the efficiency of the cyclone is estimated, it is also possible to estimate the load of the gas flow out of the cyclone.

outlet_loading = inlet_loading*(1-E)

3. Example of cyclone efficiency estimation

A factory needs to reduce the level of particles emissions out of a particular workshop. A second hand cyclone is available, having a diameter of 0.6 m, an inlet width of 0.15 m and is rated for 5 effective turns. The factory would like to know what will be the efficiency of the cyclone on the workshop air exhaust flow having a load of 17.65 grains / m3, with solids particles of 2500 kg/m3 and mean diameter of 10 microns. On the conditions considered, the inlet velocity of the air flow is 15 m/s and the air viscosity is 1.8*10-5 Pa.s and the air density is 1.2 kg/m3.

3.1 STEP 1 : gather the input data for the calculation

From the data above, one can identify :

μ = gas viscosity (Pa.s) = 1.8*10-5 Pa.s
B_c = cyclone inlet width (m) = 0.15 m
n_t = number of effective turns in the cyclone (-) = 5
v_i = inlet gas velocity (m/s) = 15 m/s
ρ_p = particle density (kg/m³) = 2500 kg/m³
ρ = gas density (kg/m³) = 1.2 kg/m³
dp = mean particle diameter of the particles in the inlet flow (microns) = 10 microns

3.2 STEP 2 : Calculate the cut diameter

The following formula can be used to calculate the cut diameter :

d_pc = [9*μ*B_c/2*π*n_t*v_i*(ρ_p-ρ)]^0.5

However one must note that the inputs must be translated to imperial units.

μ = gas viscosity (Pa.s) = 1.8*10-5 Pa.s = 1.21*10-5 lb/ft.s
B_c = cyclone inlet width (m) = 0.15 m = 0.49 ft
n_t = number of effective turns in the cyclone (-) = 5
v_i = inlet gas velocity (m/s) = 15 m/s = 49.2 ft/s
ρ_p = particle density (kg/m3) = 2500 kg/m³ = 156 lb/ft³
ρ = gas density (kg/m3) = 1.2 kg/m³ = 0.075 lb/ft³
dp = mean particle diameter of the particles in the inlet flow (microns) = 10 microns

d_pc = [9*1.21*10-5*0.49/2*π*5*49.2*(156-0.075)]^0.5 = 4.54 microns

3.3 STEP 3 : Calculate the particle size ratio

The particle size ratio is simply d_p/d_pc = 2.2

3.4 STEP 4 : Calculate the cyclone collection efficiency estimate

The efficiency can be estimate with the following formula :

Efficiency = E = 1/(1+(dp_c/d_p)²) = 1/(1+(1/2.2)2) = 0.829

The efficiency is thus estimated for this application at 82.9%

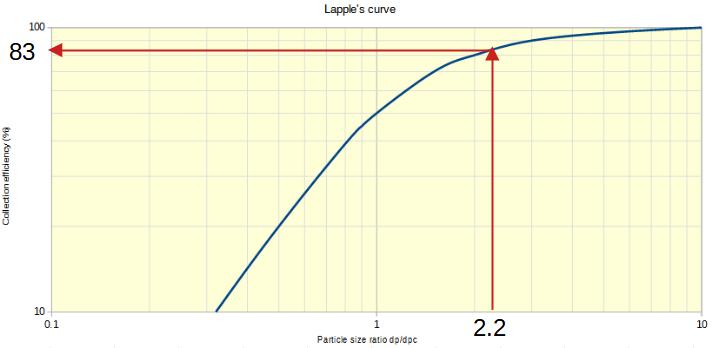

It is always good to double check with Lapple's curve.

3.5 STEP 5 : Estimate the outlet flow particle loading

Thanks to the efficiency of 0.829, the loading of the air flow leaving the cyclone can be calculated as :

outlet_loading = inlet_loading*(1-E) = 17.65*(1-0.829) = 3.02 grains/m3

The cyclone operator can then compare this value to the regulation for example and determine if the cyclone is suitable.

4. Free Excel calculation tool for estimating a cyclone efficiency

The efficiency of a cyclone based on the calculations shown above can be estimated thanks to this free Excel calculator : Calculation Tool - Cyclone efficiency estimation

Warning : this calculator is provided to illustrate the concepts mentioned in this webpage, it is not intended for detail design. Please consult a reputable designer for all detail design you may need.

Source

[Chopey] Handbook of Chemical Engineering Calculations, Chopey, MacGraw Hill
